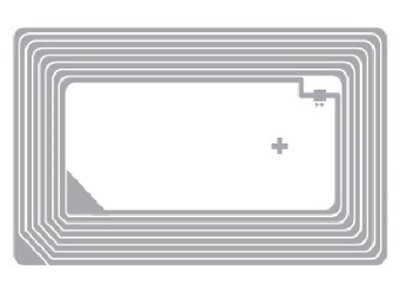

RFID Card Inlay
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
IDRFID Technology Co.,Ltd is one of the leading rfid card inlay manufacturers and suppliers, welcome to buy rfid card inlay, racetrack inlay from us.
Product model
RFID Card inlay
Passive
RFID antenna products
An antenna material
PET substrate + aluminum foil
The antenna
size 45 * 76 mm (0.5 mm)
Adhesive tape size
54 * 85.5 mm (0.5 mm)
Frequency
HF 13.56MHz
Applicable chip
MIFARE Ultralight EV1 /ICODE SLI/MIFARE S50
Conform to the standard
ISO/IEC 14443-A / ISO15693
Thickness
0.07 mm
Weight
0.01 g
Packing
1000 PCS/volume or packaging according to customer requirements
Read distance
distance is 80 mm. But related to label and legibility of the antenna size.
Storage time
After the date from production under the condition of vacuum packing in the 20 ~ 30 temperature/humidity 20% ~ 60% RH can save a year.
Operating temperature
-25℃ to +80℃
Storage temperature
-30℃ to +85℃
Application
scope identification, warehouse management, library,resource management, access control, electronic payment
http://www.idrfidtag.com
