IDRFID Technology Co.,Ltd is one of the leading rfid lamination machine manufacturers and suppliers, welcome to buy rfid lamination machine from us.

Feature

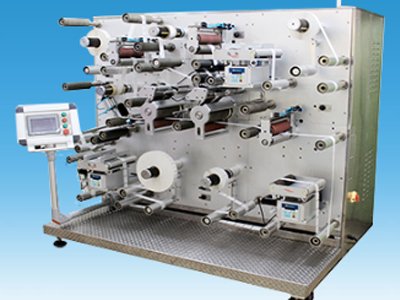

CL-822 RFID Label Automatic Lamination Machine is using RFID inlay laminating, surface of RFID tag composite
including pre die-cuting label and continuous label compound.
Automatic speed reach 60M per min. Assort with dry INLAY special die-cutting module and hot melt glue mechanism to
laminate dry&wet inlay label. Simultaneously, optional choosing high speed magnetic roller die-cutting module to
implementation of the label after the process of die cutting and production CARDS

Specification

Production Speed:

Max.60M/Min

Laminate accuracy:

±0.3mm

Label Max. Width ：

200mm

Label inner Diameter ：

φ76mm

Label outer Diameter ：

Max.Φ500mm

Function ：

RFID dry Inlay, paper, fabric Laminating

Machine Size ：

2500*1200*1900（mm）

Power ：

220V 50Hz 6KW

Weight ：

3000Kg
